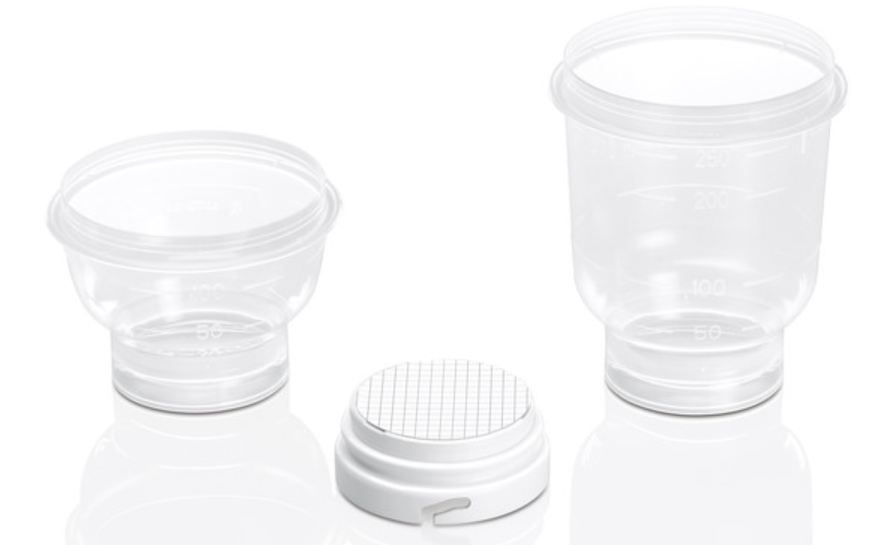

Microsart® @filter 100 | 250
Sterile single-use filter units featuring a click-fit closure
| User Benefits |
|---|
| - Fully single-use design and sterile packaging help prevent secondary contamination |
| - Reliable esults as no liquid remains after filtration |
| - Click-fit closure for fast routine analysis without the risk of leakage |
| - Transparent funnel for easy monitoring of the filtration progress |
| - Economical as the unit fits on multibranch manifolds - no added investment is needed |
Microsart® @filter units are used for colony counting. This filter allows for reliable detection and enumeration of microorganisms in pharmaceuticals, cosmetics, food, beverages, water and other liquids. The devices are sterile, ready to use and combine a funnel and a gridded membrane filter in one unit. The optimized design of Microsart® @filter permits thorough rinsing of the system subsequent to filtration, no liquid is retained in the filter funnel.
| Microsart® @filter 100, sterile single-use filter units with lid, 47mm, 100 mL, packaged on trays, ideal for use in clean benches, 24 units | ||
| Pore Size | Membrane filter*color | grid color | Item # |
| 0.45, High Flow | CN white | black | 16D01--10-H6-TG |
| Microsart® @filter 250, sterile single-use filter units with lid, 47 mm, 250 mL, packaged on trays, ideal for use in clean benches, 16 units | ||
| Pore Size | Membrane filter*color | grid color | Item # |
| 0.45, High Flow | CN white | black | 16D01--25-H6--TF |
| Microsart® @filter 100, sterile single-use filter units, 47 mm, 100 mL, stacked and packaged in bags, ideal for use with Microsart® Funnel Dispenser, 60 units | ||
| Pore Size | Membrane filter*color | grid color | Item # |
| 0.45, High Flow | CN white | black | 16D01--10-07--BL |
| Microsart® @filter 250, sterile single-use filter units, 47 mm, 250 mL, stacked and packaged in bags, ideal for use with Microsart® Funnel Dispenser, 48 units | ||
| Pore Size | Membrane filter*color | grid color | Item # |
| 0.45, High Flow | CN white | black | 16D01-25-H6-BK |
*CN= Cellulose Nitrate (Cellulose Ester), RC = Regenerated Cellulose
Microsart® @filter is a registered trademark of Sartorius.
FISCHER TECHNICAL HIGH VACUUM PUMPS
OUR RELIABLE, ROTARY VANE TYPE, LOW COST TWO-STAGE HIGH VACUUM PUMP OPERATES QUIETLY. PLEASE CONTACT US IF YOU ARE INTERESTED IN A 5CFM OR LARGER PUMP. ALL PUMPS ARE ALSO AVAILABLE IN 220V, CALL US FOR DETAILS.
Specifications:
Free Air Displacement: 85 liters per minute (3 cubic Feet per Minute)
Ultimate Vacuum: 25 microns/laboratory conditions
Pump Speed: 1725 RPM
Motor: 1/2 HP 110V, 60Hz
Oil Capacity: 27oz. (785cc)
Operating Temperature: 30º F to 170ºF
Intake Port: 3/8” OD for 3/8” ID Tubing
Weight: 30 lbs.
Dimensions: 11” H x 14” L x 5 ¼” W (27.5cm x 35CM x 12.5cm)
THE LAV-3 MODEL IS ALSO AVAILABLE WITH A 2.5" DIAL, 0 TO -30" Hg BOURDON TYPE STEEL-CASE VACUUM GAUGE SECURELY MOUNTED TO THE INTAKE.
PRODUCT NUMBER
LAV-3/G (3CFM WITH GAUGE)
Advantec MFS Stainless Steel Vacuum Manifolds
* Autoclavable vacuum manifolds available with 1, 3 or 6
stations.
*
Choose from branches with Standard Cup (accepts a #8 stopper) or Exterior Taper (accepts a 40/35 female joint)
* Sterility Test Unit features a reverse-mounted flushing manifold for use as per the USP bacteria retentive method
Click Here for more information.
